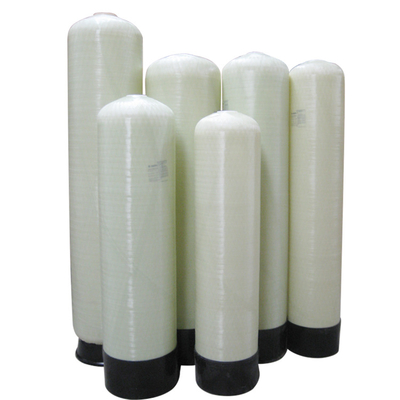

Hotels sand cheap filter activated carbon resin water tank, frp pressure tank

1 Piece
MOQ
$70.00(>=1 Pieces)
Price
Hotels sand cheap filter activated carbon resin water tank, frp pressure tank
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Hotels, Food & Beverage Factory, Farms, Home Use, Construction Works
Showroom Location: None
Video Outgoing-inspection: Not Available
Machinery Test Report: Not Available
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: Tank Body
Material: Carton
Weight: 17.27kg
Size: 400x1650mm
Warranty: 1 Year
Package: Waterproof Shipping Packing
Certification: CE&ISO&GS&RoHS
Port: Tianjin
Material: FRP
Delivery Time: Within 1 Month After Downpayment
Color: Natural/blue
Opening: Top/bottom
Opening Size: 2.5inch/4inch
After Warranty Service: Video Technical Support, Online Support
Local Service Location: None
After-sales Service Provided: Video Technical Support, Free Spare Parts, Online Support
Basic Infomation
Certification: CE&ISO&GS&RoHS
Payment & Shipping Terms
Packaging Details: 1 product carton packing bundles products packed by crate
Supply Ability: 200 Piece/Pieces per Week
Product Description

Pentair frp tank is non-corrosive and cost-effective for commercial/industrial water treatment and storage. Structural composite pressure vessels offers fiberglass construction for outstanding performance and durability in harsh chemical environment. With capacities up to 1600 gallons and a veriety of options,we can tailor a vessel to meet your needs.

Specification

ABS Inner Liner

specification size capacity opening form

H(T to B)

 LB O.D base form
inch mm L top open mm mm mm
817 Φ205*445 11.3 2.5”NPSM 446 432 206 pp
835 Φ205*905 24.0 2.5”NPSM 905 891 206 pp
844 Φ205*1130 32.5 2.5”NPSM 1131 1117 206 pp
1017 Φ255*445 17.8 2.5”NPSM 447 433 257 pp
1035 Φ255*905 38.6 2.5”NPSM 903 889 257 pp
1054 Φ255*1390 61.9 2.5”NPSM 1390 1376 257 pp
1252 Φ300*1340 84.8 2.5”NPSM 1342 1332 305 pp
1265 Φ300*1650 106.3 2.5”NPSM 1650 1640 305 pp
1354 Φ330*1400 103.6 2.5”NPSM 1400 1390 334 pp
1465 Φ355*1670 145.6 2.5”NPSM 1671 1661 360 pp
1465 Φ355*1670 145.6 4”-8UN 1671 1661 360 pp
1665 Φ400*1670 187.7 2.5”NPSM 1672 1662 410 pp
1665 Φ400*1670 187.7 4”-8UN 1672 1662 410 pp

FRP Inner Liner

specification size capacity opening form

length from

top to bottom

 length O.D base form
inch mm L top bottom mm mm mm tripod
2472 Φ600*1850 441 4”-8UN -- 1850 1750 612 tripod
2472 Φ600*1850 421 4”-8UN 4”-8UN 1850 1680 612 tripod
3072 Φ750*1850 676 6”-8UN -- 1850 1750 765 tripod
3072 Φ750*1850 640 4”-8UN 4”-8UN 1850 1670 765 tripod
3672 Φ900*1850 857 4”-8UN 4”-8UN 1850 1600 918 tripod
4072 Φ1000*1850 1046 4”-8UN 4”-8UN 1850 1605 1020 tripod
4872 Φ1200*1850 1202 FLANGE FLANGE 1850 1558 1224 tripod

different size of tanks

Any questions, pls feel free let us know:)
